GPT-OSS Inference from Scratch

In this post, we implement GPT-OSS-20B inference from scratch in PyTorch. Building GPT-OSS shares a lot of common ground with building the Qwen3 family — if you haven’t read my Qwen3 Inference from Scratch and Qwen3 MoE from Scratch posts, I recommend starting there.

GPT-OSS is also a sparse MoE transformer with RMSNorm + GQA + RoPE + SwiGLU experts — the shared components work the same way. This post focuses on things GPT-OSS does differently

Full code: llm_from_scratch/gpt_oss

Target model: GPT-OSS-20B

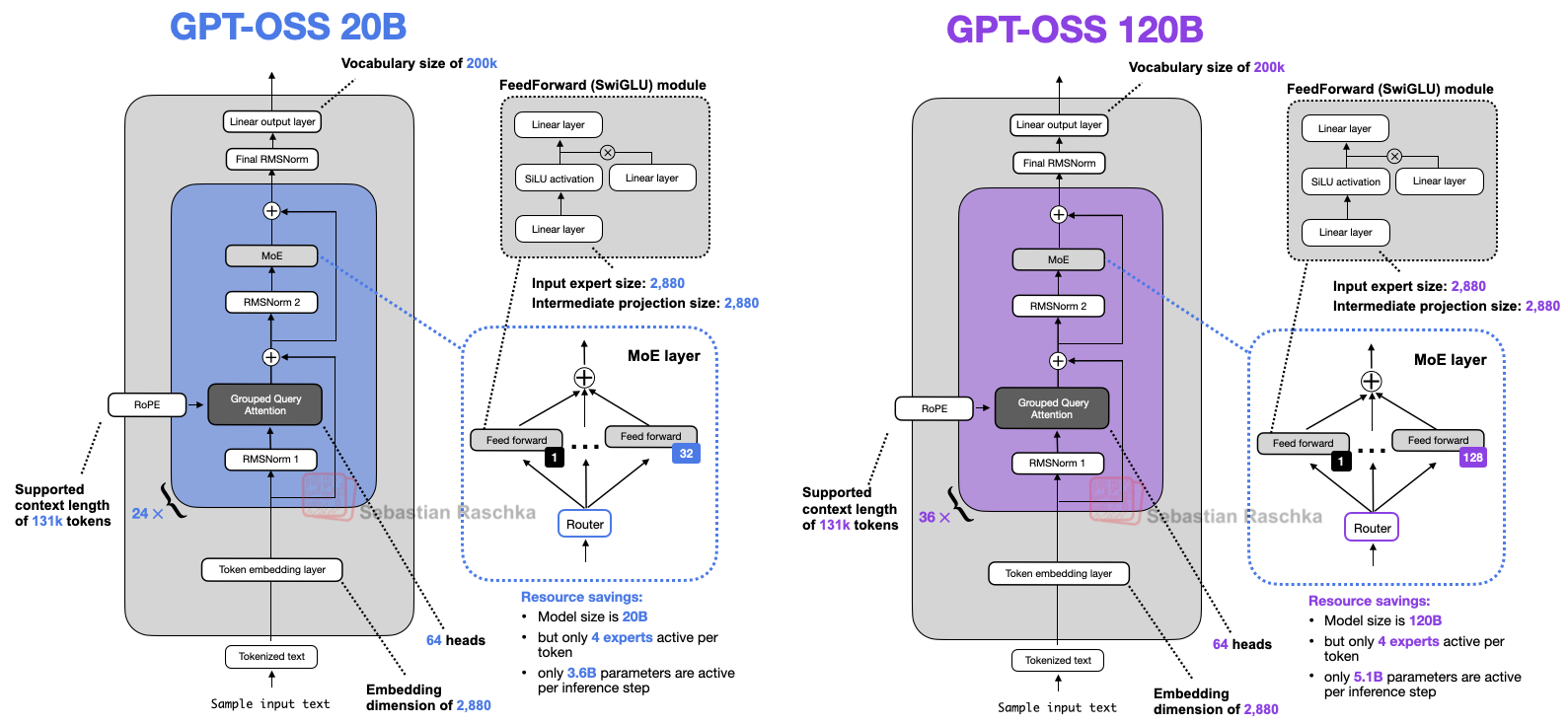

Architecture Overview

Like Qwen3 MoE, GPT-OSS is a decoder-only MoE transformer — stacked blocks with GQA attention and sparse expert FFN. But it differs in several design choices:

The full forward pass pipeline:

token_ids → Embedding → 24× [RMSNorm → GQA (YaRN RoPE + attn sinks + sliding window) → RMSNorm → SparseMoE] → RMSNorm → lm_head → logits

Config

New fields vs Qwen3-MoE:

• context_sliding_window (128) — local attention window for even-indexed layers
• swiglu_limit (7.0) — clamp threshold for gate/up projections
• yarn_original_context_length (4,096) — original training context length before YaRN extension
• yarn_scaling_factor (32.0) — how much to stretch context (4,096 × 32 = 131,072)
• yarn_beta_fast (32.0) — controls where high-frequency extrapolation starts
• yarn_beta_slow (1.0) — controls where low-frequency interpolation starts

@dataclass
class GPTOSSConfig:
    # ... same fields as Qwen3MoEConfig, plus:
    swiglu_limit: float
    context_sliding_window: int
    yarn_original_context_length: int
    yarn_scaling_factor: float
    yarn_beta_slow: float   # 1.0
    yarn_beta_fast: float   # 32.0

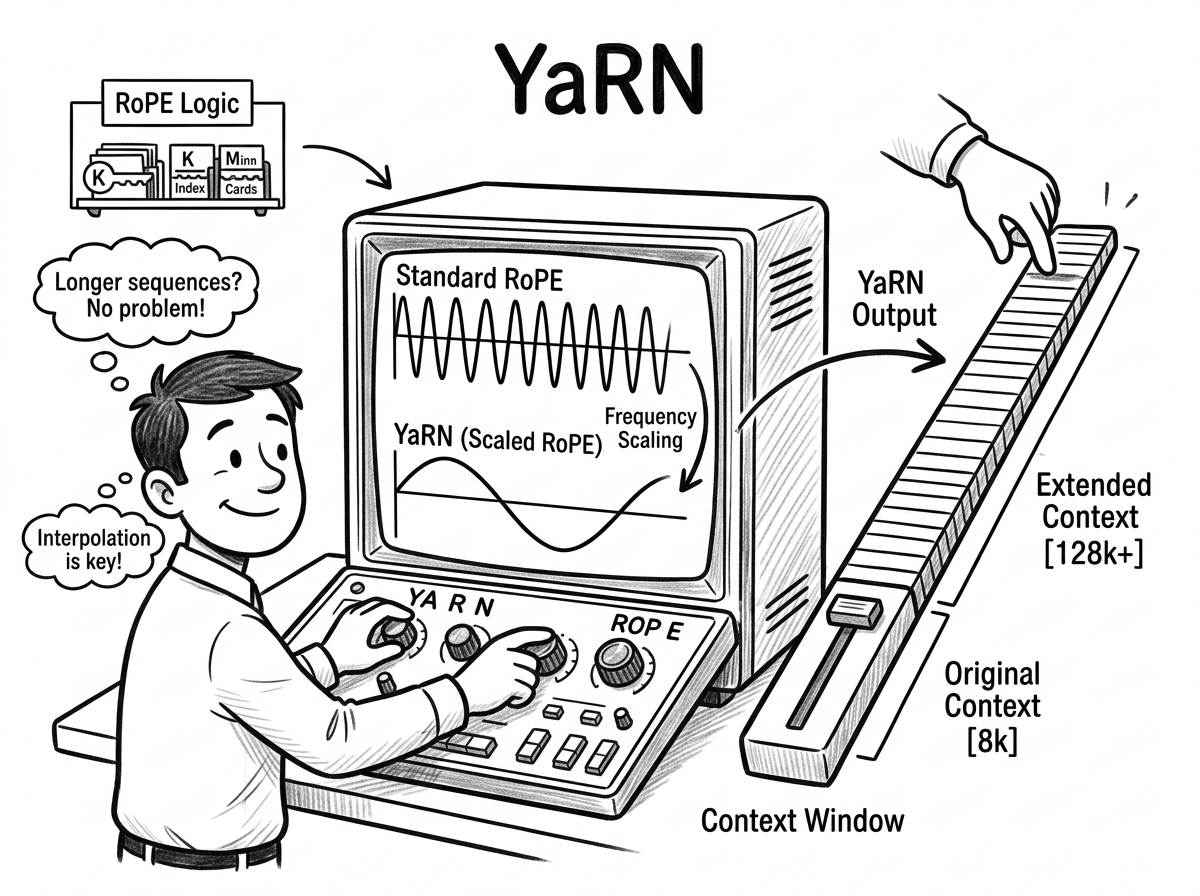

YaRN RoPE

Standard RoPE works well within the training context length, but degrades badly beyond it. GPT-OSS needs 131K — a 32× extension from its 4K training length — so it uses YaRN (Yet another RoPE extension).

The problem with naive extension

Recall the concept of RoPE: RoPE assigns each dimension pair of attention head a different rotation frequency (inv_freq[i] = 1 / base^(2i/dim)). Low indices rotate fast (catch local patterns), high indices rotate slow (catch long-range patterns).

However, a model trained on 4,096 tokens breaks at position 131,072. Low-index dimensions rotate fast and have completed many full cycles during training — they’ve seen all possible angle values, so extrapolating to longer sequences is fine. But high-index dimensions rotate so slowly they rarely finish a full cycle — extending beyond training produces angles the model has never seen, breaking its ability to capture long-range patterns.

There are two naive approaches, each with a fatal flaw:

Extrapolation — use original frequencies, let positions go beyond the training range. This works for high-frequency dims (they’ve completed many full rotation cycles during training, so the model has seen all possible angle values). But it breaks for low-frequency dims (they produce novel, out-of-distribution angles).

Interpolation — divide all frequencies by scaling factor s, compressing positions to fit within the original range. Position 131,072 with s=32 behaves like position 4,096 — safe everywhere. But it uniformly compresses all frequency dimensions, destroying the high-frequency resolution that handles local patterns (word order, syntax). Nearby tokens become harder to distinguish.

YaRN’s solution: frequency-aware blending

YaRN’s key insight: different frequency dimensions need different treatment. The key question per dimension is: how many full rotations did this frequency complete during training?

rotations[i] = original_context_length / (2π * base^(2i/dim))

• Many rotations (> beta_fast): the model has seen all angle values across a full period many times over. Safe to extrapolate — no scaling needed.
• Few rotations (< beta_slow): the model hasn’t even seen one full period. Must interpolate to stay in distribution.
• In between: blend smoothly from extrapolation to interpolation.

Implementation

Here’s the complete YaRN RoPE class — we’ll walk through each part below:

class RoPE(nn.Module):
    def __init__(self, head_dim, rope_base, max_seq_len,
                 yarn_original_context_length, yarn_scaling_factor,
                 yarn_beta_fast=32, yarn_beta_slow=1):
        super().__init__()
        self.head_dim = head_dim
        self.rope_base = rope_base
        self.max_seq_len = max_seq_len
        self.yarn_original_context_length = yarn_original_context_length
        self.yarn_scaling_factor = yarn_scaling_factor
        self.yarn_beta_fast = yarn_beta_fast
        self.yarn_beta_slow = yarn_beta_slow
        self._build_buffers()

    def _build_buffers(self):
        dim = self.head_dim
        half_dim = dim // 2

        # --- Step 1: base inverse frequencies ---
        pos_freqs = self.rope_base ** (torch.arange(0, dim, 2).float() / dim)
        inv_freq_extrapolation = 1.0 / pos_freqs
        inv_freq_interpolation = 1.0 / (self.yarn_scaling_factor * pos_freqs)

        # --- Step 2: find correction range in dimension-index space ---
        def find_correction_dim(num_rotations):
            return (dim * math.log(self.yarn_original_context_length / (num_rotations * 2 * math.pi))) / (2 * math.log(self.rope_base))

        low = max(find_correction_dim(self.yarn_beta_fast), 0)
        high = min(find_correction_dim(self.yarn_beta_slow), dim - 1)
        if low == high:
            high += 0.001

        # --- Step 3: build ramp and blend frequencies ---
        ramp = torch.clamp((torch.arange(half_dim).float() - low) / (high - low), 0, 1)
        inv_freq_extrapolation_factor = 1 - ramp
        effective_inv_freq = (
            inv_freq_interpolation * (1 - inv_freq_extrapolation_factor)
            + inv_freq_extrapolation * inv_freq_extrapolation_factor
        )

        # --- Step 4: compute sin/cos with attention scaling ---
        attention_scaling = 0.1 * math.log(self.yarn_scaling_factor) + 1.0
        positions = torch.arange(self.max_seq_len)
        angles = positions[:, None] * effective_inv_freq[None, :]
        angles = torch.cat([angles, angles], dim=-1)
        self.register_buffer("sin", torch.sin(angles) * attention_scaling)
        self.register_buffer("cos", torch.cos(angles) * attention_scaling)

    def forward(self, x, position_ids):
        sin = self.sin[position_ids].to(x.dtype)
        cos = self.cos[position_ids].to(x.dtype)
        sin = sin[:, None, :, :]
        cos = cos[:, None, :, :]
        x1 = x[..., :self.head_dim // 2]
        x2 = x[..., self.head_dim // 2:]
        rotated = torch.concat([-x2, x1], dim=-1)
        return x * cos + rotated * sin

Step 1: Base inverse frequencies

Same as standard RoPE, but we compute two versions — one for extrapolation (original frequencies) and one for interpolation (scaled down by 32×):

pos_freqs = self.rope_base ** (torch.arange(0, dim, 2).float() / dim)
inv_freq_extrapolation = 1.0 / pos_freqs                                # keep original
inv_freq_interpolation = 1.0 / (self.yarn_scaling_factor * pos_freqs)    # compress by 32×

Step 2: Find correction range

find_correction_dim converts a rotation count into a dimension index — “which dimension completes exactly N rotations within the original context length?” This is the inverse of the rotation formula:

def find_correction_dim(num_rotations):
    return (dim * math.log(original_ctx / (num_rotations * 2 * math.pi))) / (2 * math.log(rope_base))

low = find_correction_dim(beta_fast)    # dims below this: extrapolate
high = find_correction_dim(beta_slow)   # dims above this: interpolate

With GPT-OSS’s parameters (dim=64, base=150000, L=4096):

• find_correction_dim(32) ≈ 8.1 — dims 0–8 extrapolate (25% of half_dim)
• find_correction_dim(1) ≈ 17.4 — dims 18–31 interpolate (44% of half_dim)
• dims 8–17 blend (31% of half_dim)

With a small head_dim of 64 and a large 32× scaling factor, nearly half the dimensions need full interpolation. Compare this to models with dim=128 where the blend zone is proportionally wider.

Step 3: Ramp and blend

A linear ramp from 0 to 1 across the correction range. Low-index dimensions (high frequency, local patterns) keep their original frequencies. High-index dimensions (low frequency, long-range patterns) get interpolated.

ramp = torch.clamp((torch.arange(half_dim).float() - low) / (high - low), 0, 1)
inv_freq_extrapolation_factor = 1 - ramp
effective_inv_freq = (
    inv_freq_interpolation * (1 - inv_freq_extrapolation_factor)
    + inv_freq_extrapolation * inv_freq_extrapolation_factor
)

Step 4: Attention scaling

Interpolation compresses all position indices by factor s, so the angle difference between any two positions shrinks from Δpos × inv_freq to Δpos × inv_freq / s. Smaller angles mean cos(Δθ) is closer to 1 for nearby tokens → larger Q·K dot products → larger attention logits → sharper softmax. The model was trained expecting a certain logit spread, so this over-concentration hurts quality. YaRN counteracts this with a small empirical correction applied to the final sin/cos values:

attention_scaling = 0.1 * math.log(self.yarn_scaling_factor) + 1.0
self.register_buffer("sin", torch.sin(angles) * attention_scaling)
self.register_buffer("cos", torch.cos(angles) * attention_scaling)

Why this formula?

• log(s) because the distortion grows sub-linearly with the scaling factor — doubling s doesn’t double the distortion.
• 0.1 keeps the correction gentle — for s=32, this gives 0.1 × 3.47 = 0.347.
• +1.0 so the correction is a no-op when s=1 (no scaling = no correction needed).

For GPT-OSS with s=32: attention_scaling ≈ 1.347.

The scaling must be applied to sin/cos after computing them, not to the angles before — sin(c × θ) ≠ c × sin(θ). Scaling the angle changes the frequency; scaling the result changes the amplitude

Comparison with NTK-Aware Interpolation

NTK-aware interpolation achieves a similar non-uniform scaling but through a simpler mechanism — changing the RoPE base:

base_new = base × s^(dim/(dim-2))

This is derived from two boundary conditions: at i=0 (highest freq), 1/base^0 = 1 — unchanged regardless of base. At i=dim/2-1 (lowest freq), match PI exactly. The result is a smooth gradient from “no change” at high frequencies to “full interpolation” at low frequencies.

YaRN improves on NTK-aware interpolation in two ways: (1) explicit dimension zones with sharp boundaries (extrapolate/blend/interpolate) giving finer control than the smooth NTK curve, and (2) the attention scaling correction that NTK-aware interpolation lacks entirely.

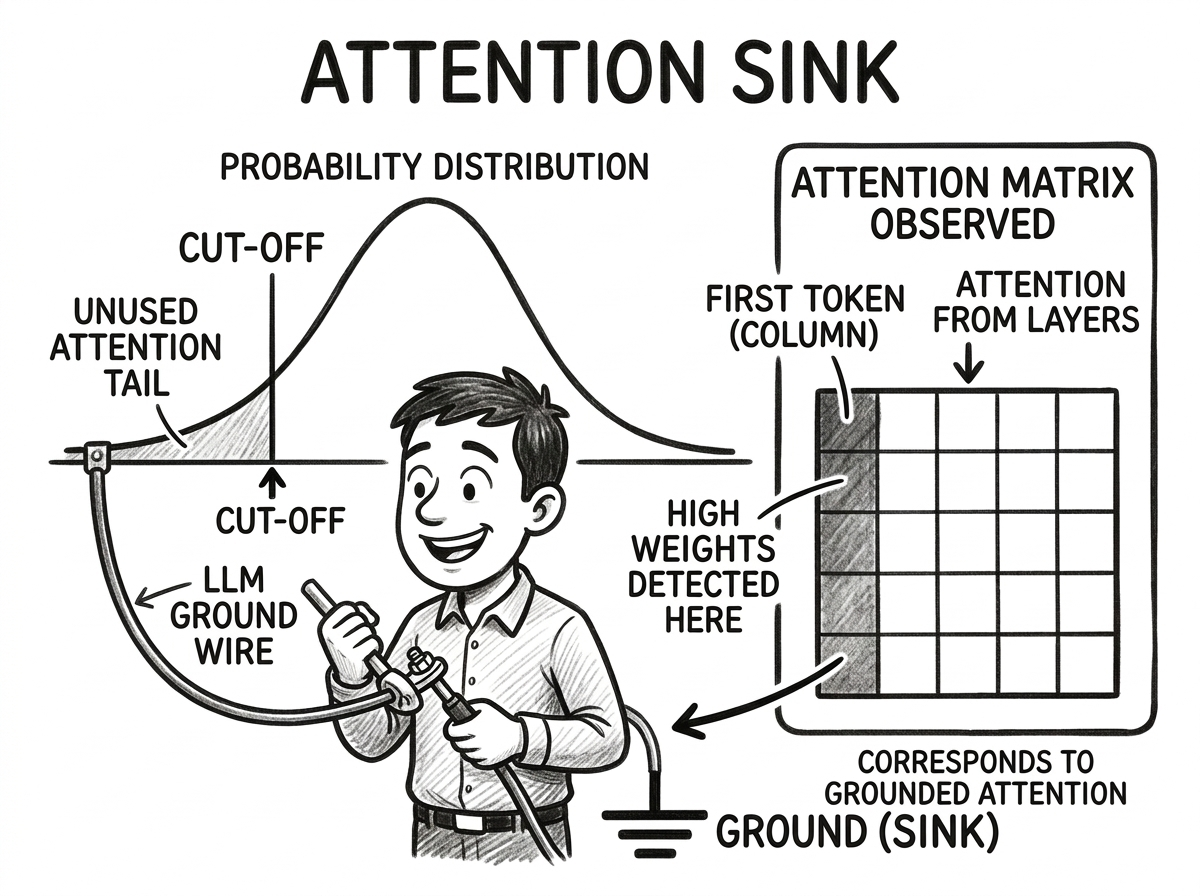

Attention Sinks

In practice, we observe that across attention layers, the first few tokens consistently receive disproportionately high attention weight — regardless of their semantic content. This is a fundamental property of the attention mechanism: some query tokens are simply unrelated to all prior tokens, but softmax forces probabilities to sum to 1, so the surplus attention must go somewhere. The model learns to dump it into the initial tokens, creating artificial “attention sinks” that distort their representations.

GPT-OSS takes a cleaner approach: instead of relying on real tokens as sinks, each attention head has a learnable sink parameter — a dedicated “none of the above” option. The sink is appended before softmax so unused attention can route there, then stripped after softmax so it doesn’t affect the weighted sum over V. No token’s representation gets corrupted.

Standard attention:
  scores = Q @ K^T / sqrt(d)        shape: (batch, heads, q_len, kv_len)
  attn = softmax(scores)            weights must sum to 1 across kv_len
  output = attn @ V

With sinks:
  scores = Q @ K^T / sqrt(d)
  scores = torch.cat([scores, sink], -1)   shape: (batch, heads, q_len, kv_len + 1)
  attn = softmax(scores)                   weights sum to 1 across kv_len + 1
  attn = attn[:, :, :, :-1]                drop the sink column
  output = attn @ V                        clean weighted sum, no forced attention

The sink is a single learnable scalar per head, broadcast across batch and query positions:

self.sinks = nn.Parameter(torch.empty(1, n_heads, 1, 1))

# In forward:
sinks = self.sinks.expand(batch, -1, q_len, -1)          # (batch, heads, q_len, 1)
scores = torch.concat([scores, sinks], dim=-1)            # append sink at the END
scores = scores - scores.max(dim=-1, keepdim=True).values  # explicit max-sub for bf16
attn = F.softmax(scores, dim=-1, dtype=scores.dtype)
attn = attn[:, :, :, :-1]                                 # strip sink before weighting V

This effect intensifies in deeper layers and has real consequences: when the first token is removed from the KV cache (e.g., in sliding window attention), the model catastrophically fails — it loses fluency and produces garbled output. The sink tokens are load-bearing, even though they carry no useful semantic information. This insight also enables streaming inference: by keeping only the first ~4 sink tokens plus a recent sliding window and discarding everything in between, models can generate coherently with constant memory over arbitrarily long sequences.

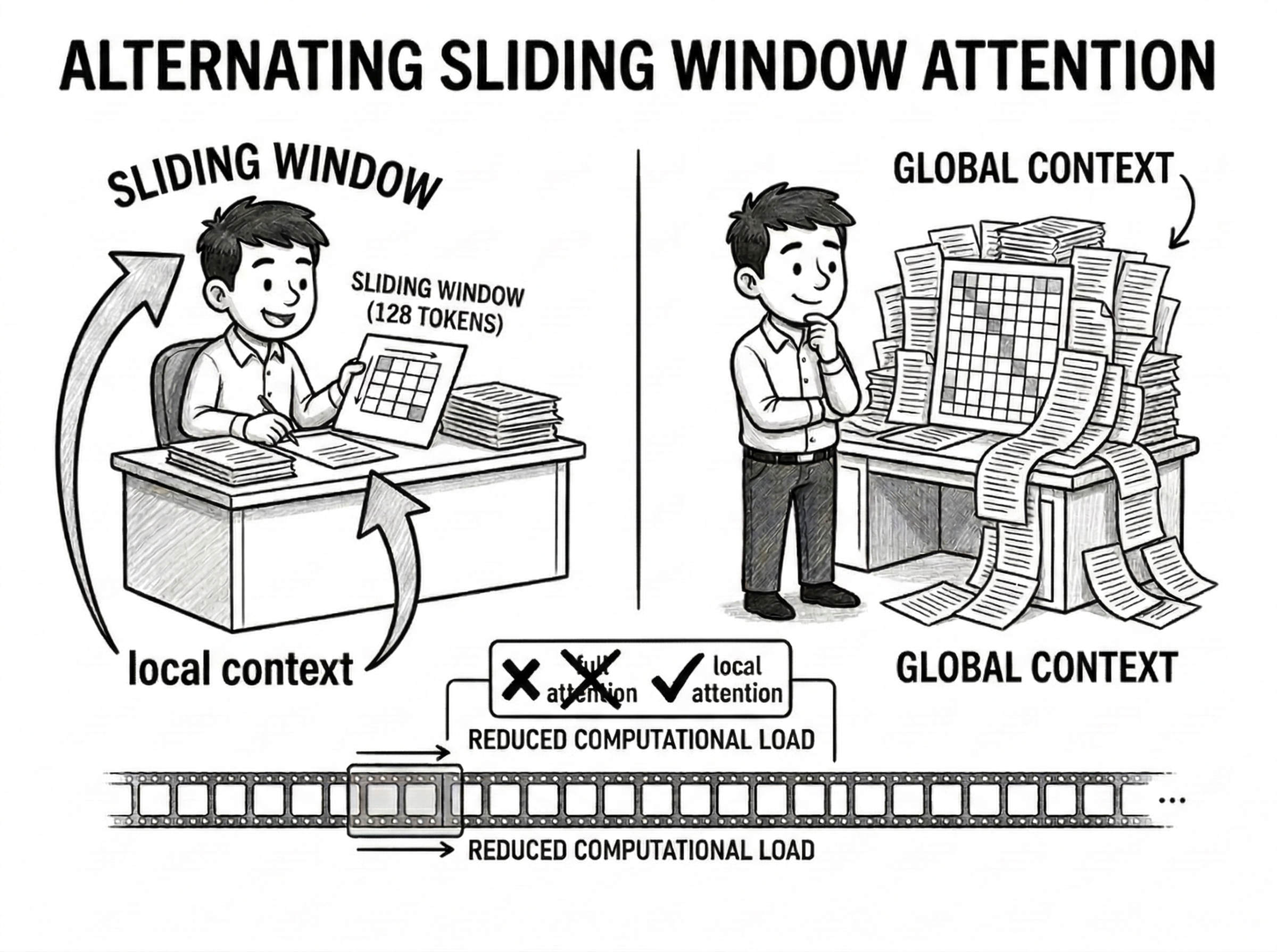

Alternating Sliding Window Attention

GPT-OSS alternates between local and global attention across layers:

Even layers (0, 2, 4, ...): sliding window attention — attend to nearest 128 tokens only
Odd layers  (1, 3, 5, ...): full causal attention — attend to all previous tokens

On a 131K sequence, even layers compute attention over 128 positions instead of 131K — a ~1000× reduction in the attention score matrix for those layers. Odd layers still maintain full context. The alternation gives the model both local precision and global awareness.

# After computing scores = Q @ K^T / sqrt(d):
if self.layer_idx % 2 == 0 and kv_len > self.sliding_window:
    mask = torch.tril(torch.ones(q_len, kv_len, device=x.device), diagonal=-self.sliding_window).bool()
    scores.masked_fill_(mask, float("-inf"))

This creates a band mask: for each query position, only the nearest sliding_window key positions are visible. Everything outside the window is set to -inf before softmax.

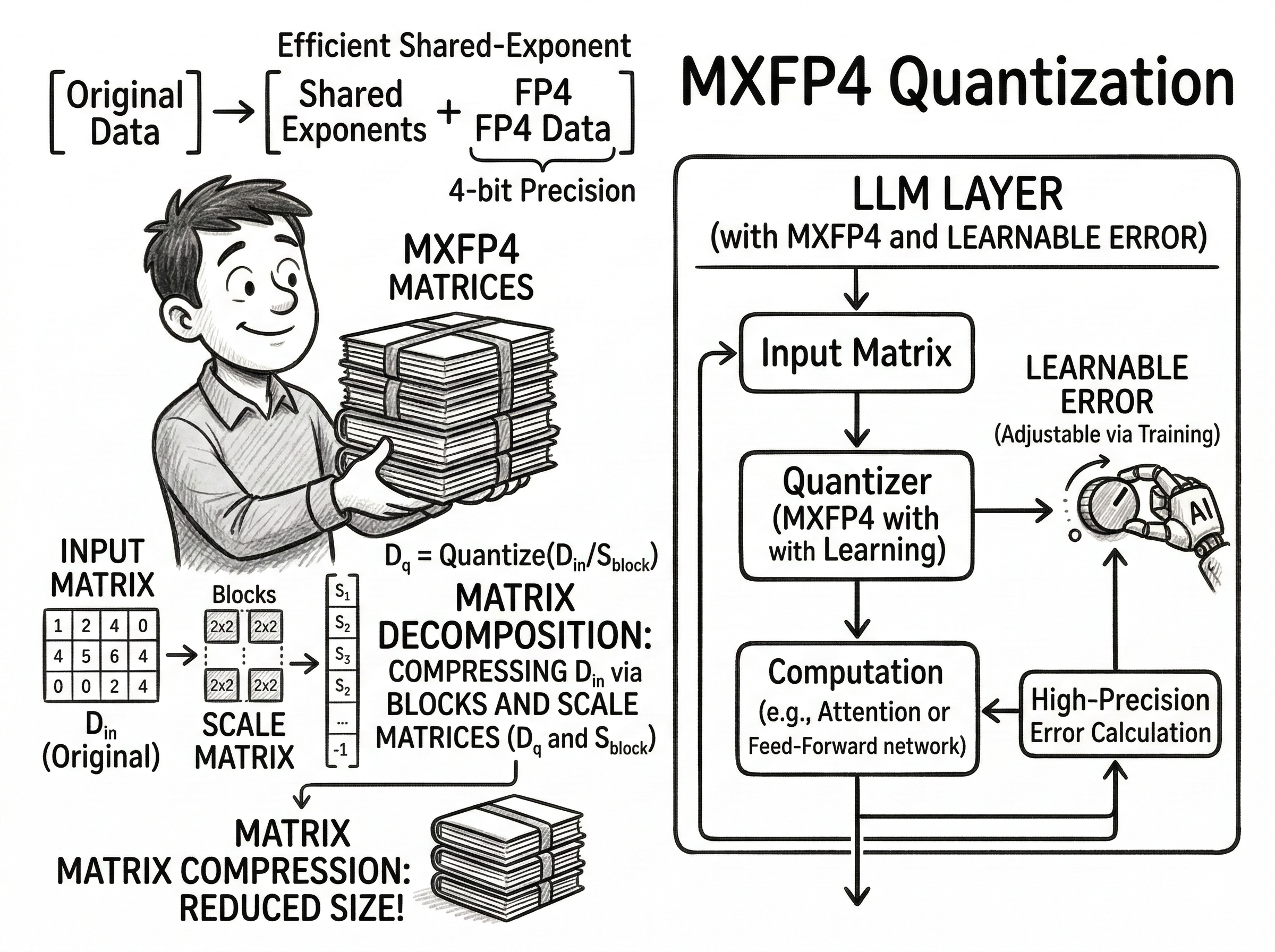

MXFP4 Quantization

This is the biggest departure from Qwen3. GPT-OSS expert weights on HuggingFace are stored in MXFP4 — a 4-bit floating point format with shared exponents. Only expert MLP weights are quantized. Attention layers, router, embeddings, and lm_head remain in bf16. This shrinks the expert MLP layer size from ~39GB (bf16) to ~13GB.

How MXFP4 works

Each block of 32 values shares a single 8-bit exponent (E8M0 format). Each individual value is a 4-bit float (E2M1 format — 1 sign, 2 exponent, 1 mantissa bits):

MXFP4 block (stored as bytes):
  16 bytes of packed data: each byte holds two 4-bit values (low nibble + high nibble)
  1 byte scale: E8M0 shared exponent for the block
  Base value range: [-6.0, 6.0] (before scaling by shared exponent)

Compression:
  1. Compute shared exponent from max absolute value in block of 32
  2. Scale values by 2^-(scale - 127)
  3. Quantize each value to nearest FP4 entry → 32 four-bit indices
  4. Pack pairs of indices into bytes (low nibble + high nibble)

Decompression:
  1. Extract nibbles → 32 four-bit indices
  2. Lookup in FP4 table → 32 float values
  3. Multiply by 2^(scale - 127) → final bf16 values

The FP4 lookup table has just 16 entries:

FP4_TABLE = [
    0.0, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 6.0,       # positive (sign=0)
    -0.0, -0.5, -1.0, -1.5, -2.0, -3.0, -4.0, -6.0, # negative (sign=1)
]

The scale is an E8M0 value — an 8-bit unsigned integer (0–255) with a bias of 127 (same convention as IEEE 754). So scale = 127 means 2^0 = 1.0 (no scaling), letting a single byte cover exponents from 2^(-127) to 2^(128). In practice, neural network weights are small, so scale is typically less than 127 (negative exponent, scaling values down).

Example: a packed byte 0xA3 with scale = 120:

low nibble  = 0x3 → FP4_TABLE[3] = 1.5  → 1.5 × 2^(120-127) = 1.5 × 2^(-7) ≈ 0.0117
high nibble = 0xA → FP4_TABLE[10] = -1.0 → -1.0 × 2^(120-127) = -1.0 × 2^(-7) ≈ -0.0078

Decompress Implementation

def decompress_mxfp4(blocks: torch.Tensor, scales: torch.Tensor) -> torch.Tensor:
    # blocks: U8 tensor (..., n_blocks, 16) — two 4-bit values per byte
    # scales: U8 tensor (..., n_blocks) — E8M0 shared exponent per block

    low = blocks & 0x0F                     # extract low nibble
    high = (blocks >> 4) & 0x0F             # extract high nibble
    # Interleave: [low0, high0, low1, high1, ...] → (..., n_blocks, 32)
    nibbles = torch.stack([low, high], dim=-1).reshape(*blocks.shape[:-1], 32)

    lut = FP4_TABLE.to(device=blocks.device, dtype=torch.bfloat16)
    values = lut[nibbles.long()]             # lookup → (..., n_blocks, 32)

    # E8M0 scale: 2^(scale_byte - 127)
    scale_values = torch.pow(2.0, scales.to(torch.float32) - 127.0).to(torch.bfloat16)
    values = values * scale_values.unsqueeze(-1)   # broadcast across 32 values

    return values.reshape(*values.shape[:-2], -1)  # flatten blocks

Clamped SwiGLU

MXFP4’s limited dynamic range requires activation clamping to prevent overflow. GPT-OSS uses a modified SwiGLU activation in its experts:

# Qwen3 standard SwiGLU:
output = silu(gate_proj(x)) * up_proj(x)
output = down_proj(output)

# GPT-OSS clamped SwiGLU:
# gate_up is a single fused projection, then deinterleaved
gate = gate_up[..., ::2]                 # even indices
up = gate_up[..., 1::2]                  # odd indices
gate = gate.clamp(max=7.0)               # prevent positive overflow
up = up.clamp(min=-7.0, max=7.0)         # symmetric clamp
glu = gate * torch.sigmoid(1.702 * gate) # ≈ GELU
output = glu * (up + 1)                  # the +1 is the key difference
output = down_proj(output)

Why up + 1? This is for training efficiency. Without +1, both gate and up start near zero after initialization — multiplying two near-zero values produces “dead zero” gradients that are hard to learn from. The +1 avoids this by making the linear path an identity by default: glu * (0 + 1) = glu. The network only needs to learn small deviations from this baseline.

Why clamp at 7.0? The exact value is not explained by OpenAI. The clamping itself prevents activation outliers that would cause overflow with MXFP4’s limited 4-bit dynamic range — but why 7.0 specifically (rather than, say, 6.0 or 8.0) is likely determined empirically during training.

Fused gate/up projection. Unlike Qwen3’s separate gate_proj and up_proj, GPT-OSS uses a single fused projection that outputs interleaved gate and up values. The even indices are gate, odd indices are up. This is more memory-efficient — one large matmul instead of two.

Quantization-aware Training

GPT-OSS uses QAT — the RLHF/SFT phase trains with simulated MXFP4 quantization, so the model learns to be robust to 4-bit precision during training, not as an afterthought.

The likely timeline:

How does QAT work here? Standard QAT pattern:

1. Master weights stay in BF16 (full precision)
2. Forward pass: quantize weights to MXFP4 on the fly, compute loss — the model “sees” the quantization error and learns around it
3. Backward pass: gradients computed and accumulated in BF16/FP32
4. After training: discard the master weights, ship only the MXFP4 version

The tricks that make FP4 training feasible: stochastic rounding (reduces quantization bias), block-wise scaling (the shared 8-bit exponent per 32 elements), and random Hadamard transforms (spreads outlier values across the block so no single element dominates the shared scale).

Why not just quantize after training? Post-training quantization (PTQ) is fast but at 4-bit the error noticeably degrades quality. The key insight is that quantization error is not random noise — it’s deterministic and structured. For a given weight and quantization scheme, the rounding error is always the same. Because it’s systematic, the model can learn to compensate: QAT does this by adjusting all weights during training.

Note that QLoRA relies on the same fact. Besides, only a small percentage of weights have large magnitude and cause significant quantization error, so the error matrix is effectively low-rank. QLoRA freezes the quantized weights and trains low-rank adapters to learn these errors directly.

Do you need to decompress to BF16 at inference? Only when hardware or kernels don’t support MXFP4 natively. Optimized Triton kernels decompress block-by-block on-the-fly in registers, and Blackwell tensor cores accept FP4 inputs directly.

Weight Loading

The weight loader iterates over safetensors shards, collecting MXFP4 block/scale pairs in a cache. When both parts of a pair are loaded, it decompresses to bf16:

# MXFP4 pairs: blocks + scales → decompressed weight
MXFP4_PAIRS = {
    "mlp.experts.gate_up_proj": "moe_ffn.gate_up_proj_weight",
    "mlp.experts.down_proj":    "moe_ffn.down_proj_weight",
}

# During loading:
for hf_key, tensor in shard.items():
    for prefix, model_suffix in MXFP4_PAIRS.items():
        if hf_suffix == f"{prefix}_blocks":
            mxfp4_cache[cache_key]["blocks"] = tensor
        elif hf_suffix == f"{prefix}_scales":
            mxfp4_cache[cache_key]["scales"] = tensor

# After shard: decompress any complete pairs
for model_key, pair in mxfp4_cache.items():
    if "blocks" in pair and "scales" in pair:
        weight = decompress_mxfp4(pair["blocks"], pair["scales"])
        renamed[model_key] = weight

Note that GPT-OSS stores expert weights as 3D tensors (n_experts, out_dim, in_dim) — all experts stacked together — unlike Qwen3 which has separate per-expert weight files. This matches the F.linear(tokens, weight[expert_idx], bias[expert_idx]) indexing in the forward pass.

Tokenizer

GPT-OSS uses tiktoken (OpenAI’s BPE tokenizer) instead of HuggingFace tokenizers. The base encoding is o200k_base (200K vocabulary), extended with model-specific special tokens loaded from tokenizer.json:

import tiktoken

base = tiktoken.get_encoding("o200k_base")
special_tokens = {**base._special_tokens}
for token in tok_json["added_tokens"]:
    special_tokens[token["content"]] = token["id"]

encoding = tiktoken.Encoding(
    name="o200k_harmony",
    pat_str=base._pat_str,
    mergeable_ranks=base._mergeable_ranks,
    special_tokens=special_tokens,
)

Key special tokens: <|startoftext|> (199998, BOS), <|endoftext|> (199999, PAD), <|return|> (200002, EOS). Chat formatting uses a Jinja2 template, same approach as Qwen3.

Lessons Learned

Some non-obvious things I encountered while implementing GPT-OSS:

• YaRN scaling targets sin/cos, not angles. sin(c * θ) ≠ c * sin(θ). Scaling the angle before sin/cos changes the frequency — scaling the result changes the amplitude. This is a subtle but critical distinction.
• YaRN ramp space matters. The interpolation/extrapolation blend must be in dimension-index space, not wavelength space. The find_correction_dim function converts rotation counts into dimension indices where the transition should happen.
• bf16 precision is a minefield. Five of the ten bugs I fixed were bf16 rounding issues: RoPE buffer dtype, max-subtraction before softmax, sink concatenation order, fused vs separate QKV, and F.linear vs .T.contiguous(). Each one produced slightly different results that only showed up in token-for-token accuracy tests against HuggingFace. Individual operations are IEEE-754 compliant — the differences come from operation ordering (left-to-right accumulation, different BLAS tiling). If you’re implementing a model from scratch and need exact match, prepare to care deeply about the order of floating-point operations.
• .T.contiguous() is secretly expensive. Using weight.T.contiguous() to match HF’s BLAS path forces a full weight copy per expert per layer. With 4 active experts × 2 projections × 24 layers, that’s ~4.8 GB of memcpy per decode step. F.linear avoids this entirely by using a BLAS transpose flag — zero-copy, ~5× faster. The tradeoff: slightly different bf16 rounding, which we accept.
• MXFP4 decompression is simple but easy to get wrong. The nibble interleaving order (low nibble first, then high nibble from the same byte) must match the packing convention. Getting it backwards produces garbage weights that look plausible (no NaN/inf) but generate nonsense.
